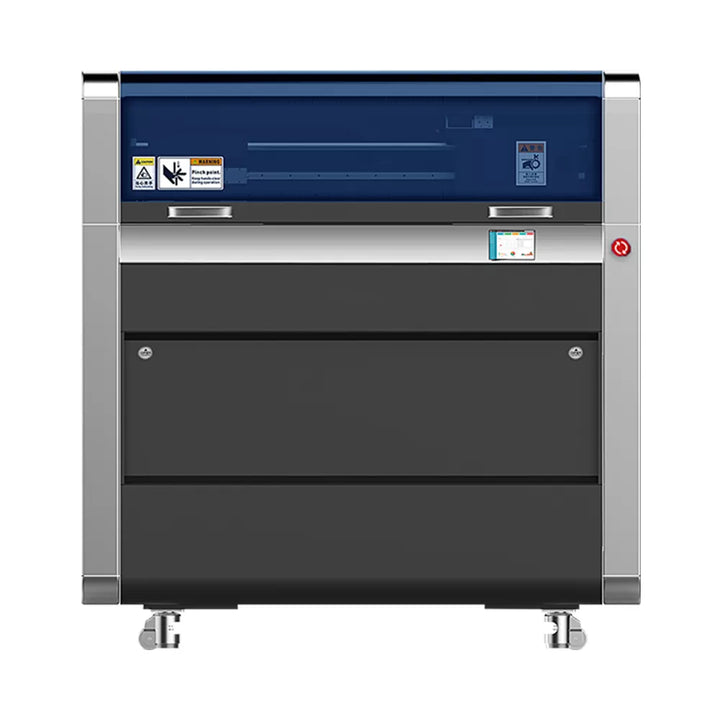

Multi Color 3D Printer J402PLUS - C3D01
J402Plus 3D Printer creates lifelike 3D portraits with precision using high-quality resin material!
- Warranty：1 year
- Checkout Method: Telegraphic Transfer (TT) / Bank Transfer
- Please contact us for more information！
Multi-color 3D Printing Basic Configuration
| Highest Resolution | 600*600*1200dpi |
| Print Head | 3 sets |
| Printing Channel | 12 material channels |
| Number of Nozzles | 3,840 nozzles |
| Material Configuration | 7 materials |
| Maximum Forming Size | 395*345*250mm |
| Forming Platform Specifications | 400*350*250mm |
| Print Effect |
|
| Print Mode |
|
J402Plus 3D Printer Machine Configuration
| Dimension | 1,170*860*1,235mm |
| Machine Weight | 670kg |
| Operating System | Windows7, Windows8, Windows8.1, Windows 10, 64 bit |
| Support Format | STL, PLY, WRL, OBJ, WJP(Dedicated) |
| Internet Connection | LAN-TCP/IP |
| Power Requirements | AC200-240V 50-60Hz |
| Rated Power | 1.2KW |
|
Operating Environment |
Temperature 20-30°C (64-77°F); relative humidity 30-80% (non-condensing) |
|
Certified |
CE, FCC, RoHS |
Key Advantages of the J402Plus 3D Printer
How does the J402Plus 3D Printer work?
-
Step 1: 3D Printing Process
The model is created using a 3D printer with your chosen design and materials.
-
Step 2: Support Material Removal
Remove any support materials used during the printing process.
-
Step 3: Soak in Alkaline Solution
Soak the model in an alkaline solution for 5 minutes to dissolve the support material.
-
Step 4: Rinse by Water
Rinse the model with water to remove any remaining solution or residue.
-
Step 5: Sandblasting
Use sandblasting to smooth out the surface for a finer finish.
-
Step 6: Varnish
Apply a varnish for a better texture and more polished look.
-
Step 7: UV Light Curing
Expose the model to UV light for a thoroughly cured and hardened finish.
-
Step 8: Artwork Finished
The 3D printed artwork is now complete and ready for use or display!
