ColorJet Printing Technology
The Principles of ColorJet Printing
ColorJet Printing (CJP) is a full-color 3D printing technology that uses a powder-based process. A printhead sprays a liquid binder onto a thin layer of powder to form each layer of the object. At the same time, color ink is added, allowing for high-resolution, full-color prints. The process is repeated layer by layer until the model is complete.
- Full-Color Capability – Can produce realistic colors, gradients, and textures.
- Powder-Based Process – Uses gypsum powder, eliminating the need for support structures.
- Fast Printing Speed – Suitable for creating detailed prototypes quickly.
- Post-Processing Required – 3D Prints are fragile and need infiltration with resin or glue for durability.
The ColorJet Printing Process
Preparation
The 3D model is uploaded into the printer’s software and sliced into layers. The printing area is filled with gypsum powder, which serves as the base material. The full-color 3D printer is then calibrated to ensure accuracy.
Powder Layering
A thin layer of gypsum powder is evenly spread across the build platform using a roller. This layer acts as the foundation for the binder and color application. The process ensures uniform thickness for precise printing.
Binder & Color Application
A printhead sprays a liquid binder onto the powder to fuse it into a solid shape. Simultaneously, color inks are applied to achieve full-color details. This step is crucial for creating realistic textures and gradients.
Layer-by-Layer Printing
The ColorJet 3D printer repeats the layering, binding, and coloring process until the entire model is built. Each layer fuses with the previous one, gradually forming a complete 3D object. The build chamber remains filled with loose powder, supporting the model as it prints.
Drying & Extraction
After 3D printing, the 3D model stays in the powder bed to dry and harden slightly. Excess powder is carefully removed using brushes or compressed air, revealing the printed object. This powder can often be recycled for future prints.
Post-Processing
Since ColorJet prints are fragile, they require infiltration with resin or glue to improve strength. This step also enhances color vibrancy and surface quality, making the model more durable and visually appealing.
Featured Printer: ProJet 660Pro
3D Systems has long been a leader in the 3D printing world, and their ProJet 660Pro is a great example of their expertise in full-color printing. Using ColorJet Printing (CJP) technology, this printer is perfect for those who need high-resolution, multi-color models quickly. It’s especially popular with designers and architects who create detailed, visually rich prototypes. What makes the ProJet 660Pro stand out is its speed and reliability, making it a top choice for visual prototypes and concept models that require color accuracy without the hassle of additional support structures.
Multi Jet Fusion Technology
Understanding Multi Jet Fusion
Multi Jet Fusion (MJF) is an industrial full-color 3D printing technology that uses a powder-based process. A printhead sprays both fusing agents and detail agents onto a layer of powder material. The fusing agents help the material bond and solidify, while the detail agents improve the resolution of fine features. Heat is then applied to fuse the powder, forming the object layer by layer. MJF allows for high-speed, high-accuracy prints and is suitable for both prototyping and end-use production.
- Exceptional Strength – Produces strong, durable parts that are ideal for functional use, not just prototypes.
- High-Precision Detailing – Achieves fine details and sharp features with excellent accuracy, making it perfect for intricate geometries.
- Fast Build Speed – Offers quick production times for large quantities of parts, making it efficient for both prototyping and production.
- Complex Geometries – Capable of printing complex and highly detailed parts that would be difficult or impossible to achieve with other 3D printing methods.
- Full-Color Capability – When using specific materials, MJF can produce full-color prints, offering vibrant models for prototypes and visual designs.
The Multi Jet Fusion Printing Process
Preparation
The 3D model is uploaded into the printer’s software, and the design is sliced into layers. A powder bed of material such as nylon is prepared, and the full-color 3D printer is calibrated for precise printing.
Powder Layering
A thin, even layer of powder is spread across the build platform. The material serves as the foundation for the fusion process, ensuring accuracy and consistency in each layer.
Fusing & Detail Agents Application
The printhead sprays fusing agents to help bond the powder and detail agents to improve the precision of the printed details. These agents are applied precisely to ensure a high-quality, accurate print.
Layer-by-Layer Printing
The Multi Jet Fusion printer uses heat to fuse each layer of powder, gradually building the object layer by layer. The powder bed supports the print, eliminating the need for additional support structures.
Cooling & Extraction
After full-color printing, the 3D model is allowed to cool within the powder bed. Excess powder is then carefully removed, and the print is cleaned to reveal the final product.
Post-Processing
Post-processing may be required for enhanced surface finish, such as sanding, coloring, or sealing to improve appearance or durability.
Notable Printer: HP Jet Fusion 580
HP, known for its cutting-edge technology, brings its Multi Jet Fusion (MJF) capabilities into the world of 3D printing with the HP Jet Fusion 580 Color 3D Printer. This printer is perfect for those who need durable, full-color parts with fine details. Whether you're in the automotive, aerospace, or consumer goods industries, the HP Jet Fusion 580 Color 3D Printer is built to handle functional prototypes and end-use parts. What makes it so powerful is its speed and precision, allowing manufacturers to quickly create production-ready models with high strength and accuracy.
Material Jetting Technology
Overview of Material Jetting
Material Jetting (MJ) is a full-color 3D printing technology that uses liquid photopolymer materials, which are sprayed through printheads and cured by UV light. The printhead deposits fine layers of material, building up the object layer by layer. This technology offers high-resolution prints with smooth surface finishes and is capable of producing multi-material and multi-color prints in a single job.
- High-Resolution Printing – Delivers precise, smooth surface finishes and high levels of detail, ideal for fine features and intricate designs.
- Multi-Material and Multi-Color Capability – Capable of printing with different materials and colors simultaneously, allowing for multi-functional and multi-colored prototypes.
- Smooth Surface Finish – Produces parts with highly polished surfaces directly from the printer, reducing the need for post-processing.
- Complex Geometries – Excellent for printing detailed, complex shapes with high accuracy, suitable for rapid prototyping.
-
Low Support Requirement – Since the material is deposited layer by layer, support structures are minimal and can often be removed easily.
The Material Jetting Process
Preparation
The 3D model is prepared and sliced into layers in the printer's software. The printer is loaded with the desired photopolymer materials, and the printing area is set for optimal performance.
Material Deposition
The printhead sprays thin layers of photopolymer material onto the build platform. The material is precisely deposited according to the model’s design, ensuring high-resolution detail in every layer.
Curing with UV Light
After each layer of material is deposited, the part is exposed to UV light, curing the photopolymer material and solidifying the print. This process ensures the material bonds together, creating a durable and accurate object.
Layer-by-Layer Printing
The process repeats layer by layer, with the printer carefully depositing and curing the material until the object is complete. Each layer adheres to the previous one, creating a highly detailed and intricate final product.
Post-Processing
While Material Jetting parts often have smooth surfaces, post-processing may be required for cleaning, support removal, or finishing touches to improve aesthetics or durability.
Highlighted Printer: Mimaki 3DUJ-553 and Sailner J402Plus

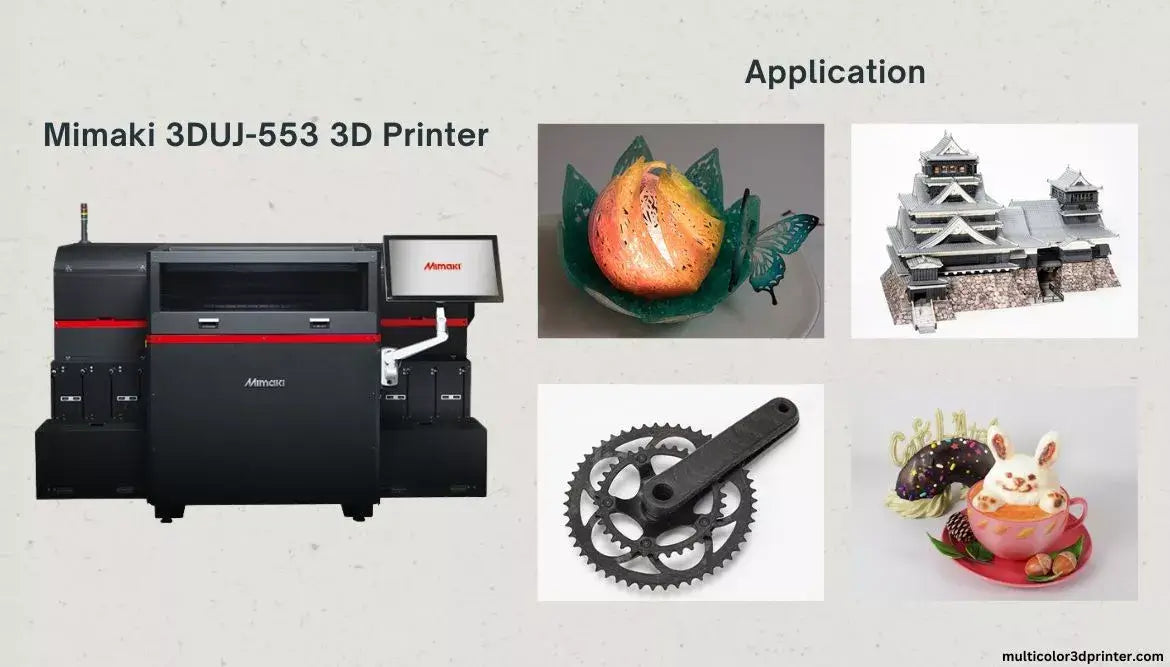

Mimaki has made a name for itself in the printing world, and the Mimaki 3DUJ-553 3D Printer takes the expertise into the realm of full-color, multi-material 3D printing. Known for its ability to produce incredibly detailed, vibrant models, the Mimaki 3DUJ-553 3D Printer is ideal for industries like product design, medical modeling, and entertainment. This printer’s ability to handle multiple colors and materials in a single print makes it perfect for creating intricate prototypes, figurines, and collectibles. Its high-quality output and versatility in material choice make it a top option for anyone needing highly detailed, realistic prototypes.
The Sailner J402Plus 3D Printer is another excellent choice for Material Jetting technology. Known for its ability to handle multiple materials and vibrant colors, it’s perfect for creating high-detail prototypes and functional parts. The Sailner J402Plus 3D Printer uses jetting technology to carefully layer materials, offering high resolution and enabling the production of complex models with varied textures and properties. This printer is particularly valuable in industries like consumer goods, education, architectural models, and medical modeling, where precision and material variety are essential for creating detailed, colorful models like 3D portrait figurines or interactive educational tools.
